EGW WINCHESTER 70 PICATINNY RAIL HH .325 REAR 0 MOA
EGW42400

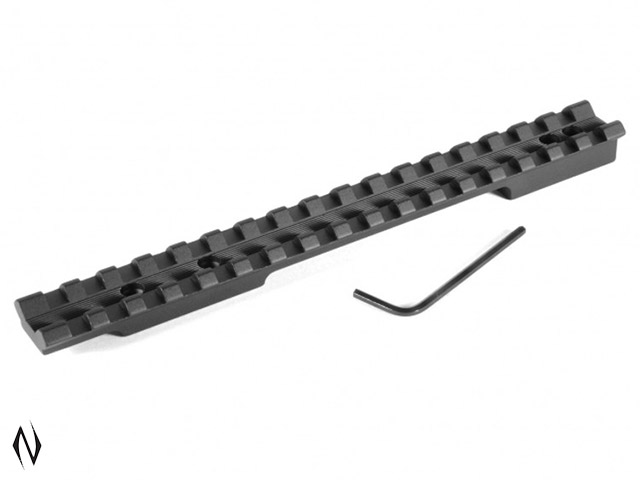

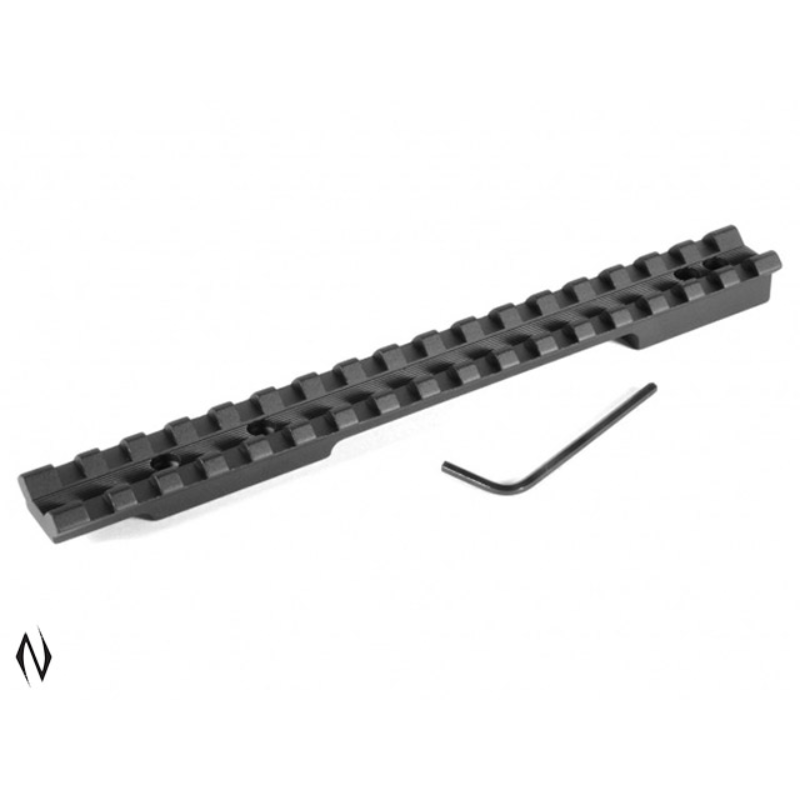

EGW WINCHESTER 70 PICATINNY RAIL HH .325 REAR 0 MOA
>>This mount fits: Winchester
70 H&H; .325 Rear Spread
<>Rail Type: One Piece
Picatinny
<>Machined from: Domestic 6061
T6 Extruded Aluminum
<>Finish: Matte Black
Anodizing
<>Centre Spread: 4.343"
<>Overall Length: 7.064"
<>Height: .4" (Top of Receiver
to Top of Picatinny)
<>Weight: 2 oz.
<>Quick Disconnect Ring
Compatible: No
<>Ambidextrous: Yes
<>Torque Specs: 20 in/lbs
<>Mounting Hardware: #6-48 X
1/4 Screws and T-10 Bit
Included
>>This mount comes standard
with a bevel on both sides
making it ambidextrous.
>>We recommend measuring the
hole spacing in your receiver
to confirm it matches with the
dimensions we have published.
>>Picatinny cross slots run
the full length of the rail,
which gives the shooter
flexibility when mounting
scope rings and other
accessories. The channel in
the center reduces the overall
mass of the mount. Also, in
many cases, it will not
obstruct usage of factory iron
sights. Our one-piece scope
mounts are the obvious choice
for hunters and tactical
shooters alike.
>>We machine these in our shop
using one of our machining
centers. After machining, the
mounts are tumbled, sand
blasted, and Type II anodized
for long lasting durability.
>>Installation: We recommend
20 inch lbs of torque and a
drip of blue loctite (loctite
is available through our
website and is sold
separately).
Key Features
| Available in: | |
| Brand: | Evolution Gun Works |
