Cartridge Overall Length Gauge
>>If you have a cleaning rod
and a set of calipers, you can
now determine the optimum OAL
for any bullet in less than

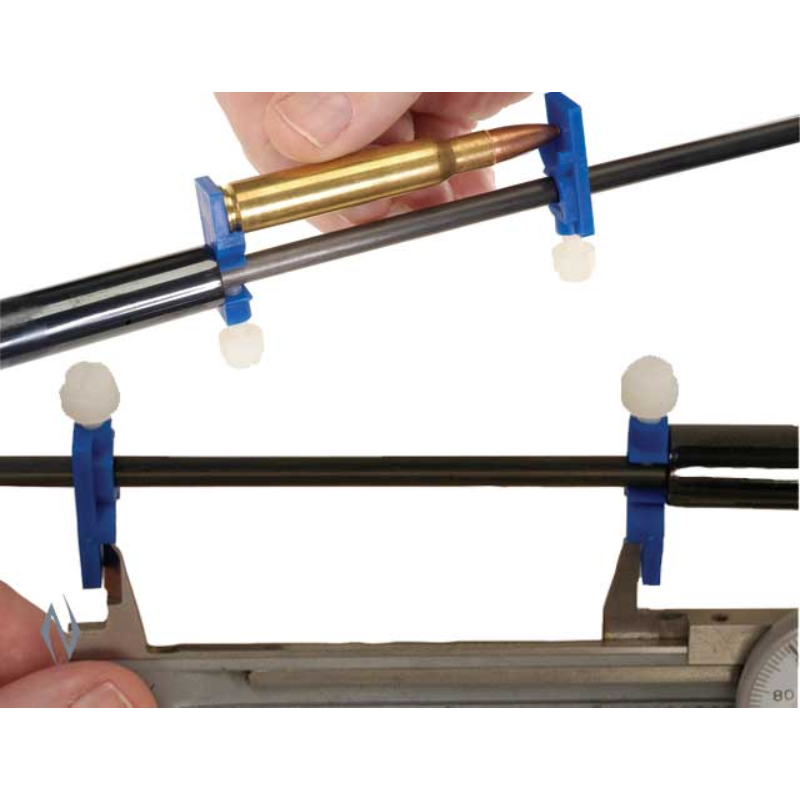

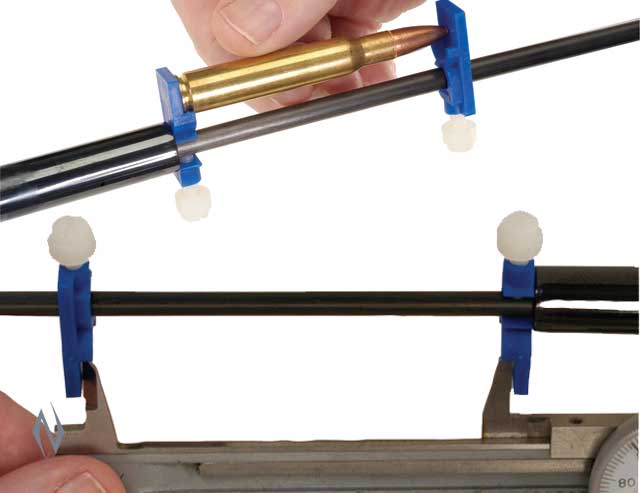

two minutes. This simple kit
consists of two clamps
that easily attach to any
cleaning rod, 1/4" in
diameter, or less. Simply
install the appropriate size
tip on the end of your
cleaning rod, insert the
cleaning rod to the
bolt face, install one clamp,
remove the bolt and drop in a
bullet (projectile only) into
the chamber. Hold the bullet
against the rifling with a
pencil, touch the bullet
tip with the cleaning rod tip
and install the other clamp.
Now measure the inside
distance between the two
clamps with a calipers and
record, or use as a gauge to
check the
seating depth set-up during
your reloading sequence. Works
on all rifles.
>>Complete instructions are
included.
