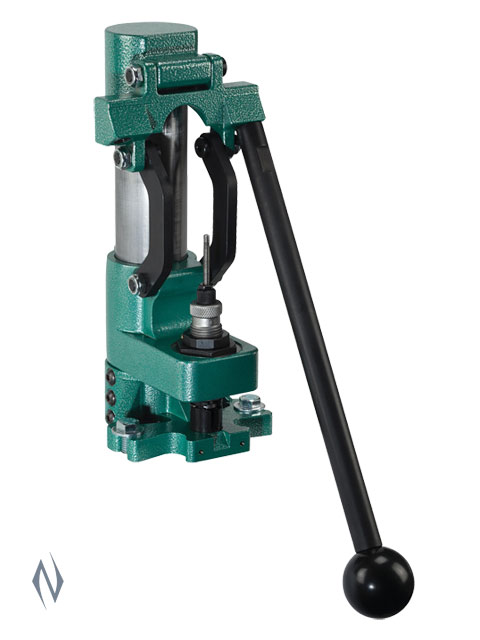

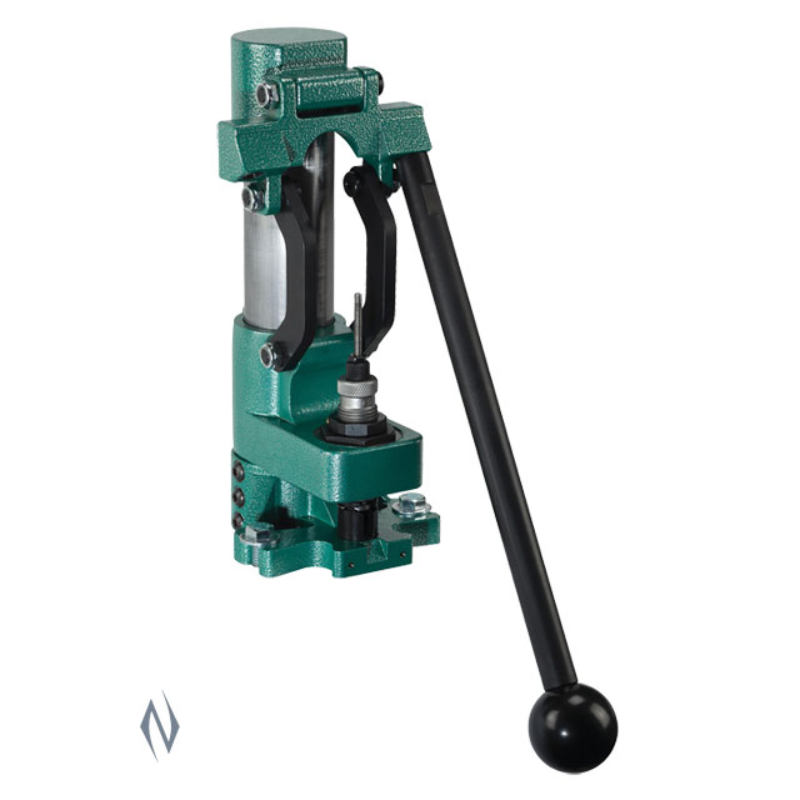

RCBS SUMMIT SINGLE STAGE PRESS
R9290
RCBS SUMMIT SINGLE STAGE PRESS
>>RCBS has been manufacturing
high quality reloading
equipment for over 50 years.
The Summit Single Stage
reloading press is no
exception.
>>The Summit press will work
with standard 7/8-14 threaded
dies, 1" die bodies with
(adaptors, sold separately)
and has enough leverage to
handle any difficult sizing
task.
>>The innovative design mounts
the entire press to the top of
the bench and actually lowers
the die down to the case. The
steel linkage and cast iron
frame help to ensure that the
press is stable and rugged to
hold up to years of serious
reloading.
>>The solid construction and
design allows reloader's the
ability to achieve great
precision and accuracy which
is paramount to accurate
handloading.
>>This press will easily work
for both right and left handed
reloaders with the
ambidextrous design, while the
4.5" opening gives ample room
for sizing the largest cases
reloaders need to size.
This press has a massive 2"
diameter ram with a Zerk
fitting for easy lubrication.
The spent primer catcher is in
a very convenient location
under the shellholder and the
press is manufactured in the
USA.
>>Technical Information
<>Press Type: Single stage
<>Frame Material: Cast iron
<>Frame Design: C-Frame
<>Frame Offset: 0 Degrees
<>Frame Opening Size: 4.5"
<>Handle Location: right or
left hand
<>Die Size Accepted: Standard
7/8-14 threaded dies, 1" dies
with thread adaptors (sold
separately)
<>Die Bushing Accepted: No
<>Spent Primer Collection
System: Yes, located under the
Shellholder
<>Ram Diameter: 2"<>Priming
Feature: No, cases must be
primed with a dedicated
priming tool <>Number of
Mounting Holes: 2 <>Mounting
Hardware Included: No
>>Additional Features: <>Bench
top operation <>Ambidextrous
handle <>Compound leverage
<>Full frontal access
<>Zerk lubrication fitting
<>Short handle available (sold
separately) for loading
shorter cases
